Don’t Let It Drain You: The Smart Choice between Box & Eaves Gutters

When designing or maintaining a roof drainage system, choosing the right type of gutter is essential. Two commonly used types are Box gutters and Eaves gutters. Though both serve the same purpose—directing rainwater away from the roof—their design, placement, and functionality vary significantly.

In this blog, we break down the key differences between Box gutters and Eaves gutters to help you make the right decision for your project.

🌧️ What is a Gutter?

Before diving into the differences, let’s briefly understand the role of a gutter:

A gutter is a water channel that collects rainwater from a roof and directs it away from the building through downpipes. This helps prevent structural damage, foundation issues, and moisture buildup.

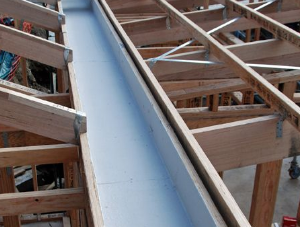

📦 What is a Box Gutter?

A box gutter is a concealed, rectangular-shaped gutter typically installed between two roof slopes or between a roof and a wall. As the name suggests, it resembles a “box” in cross-section.

✅ Common Applications:

• Between two sloping roof sections

• Behind parapet walls

• On flat or low-slope roofs in commercial and industrial buildings

⭐ Advantages:

• Hidden design for clean architectural lines

• Ideal for modern buildings with parapet walls

• Can handle high volumes of rainwater when sized properly

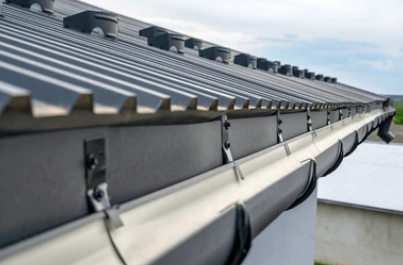

🏠 What is an Eaves Gutter?

An eaves gutter is the most common type found in residential buildings. It is installed along the bottom edge (eaves) of the roof and is visible from the outside.

✅ Common Applications:

• Along sloped tile or metal roofs

• Typical in homes, sheds, and small commercial buildings

⭐ Advantages:

• Easy to install, clean, and maintain

• More cost-effective than box gutters

• Readily available in a variety of styles and materials

🔍 Box Gutter vs. Eaves Gutter: Comparison Table

Feature	Box Gutter	Eaves Gutter
📍 Location	Hidden between roof slopes or walls	Externally attached at roof edge
🔷 Shape	Rectangular or square	D-shaped, semicircular, or square
🏗️ Structural Integration	Built into the roof design	Mounted on fascia or rafter ends
🌧️ Water Capacity	High (if properly sized and sloped)	Moderate
🛠️ Maintenance	Difficult – usually internal access only	Easy – visible and accessible
🏢 Common Usage	Commercial, industrial, modern homes	Residential, light commercial
🎨 Aesthetic	Concealed – clean roofline look	Visible – variety of styles available

🏗️ What We Do at Sharcon

At Sharcon, we specialize in modeling both box gutters and eaves gutters with precision, based on architectural and hydraulic requirements.

• Box Gutters: Integrated within the roof or wall geometry for a concealed drainage solution.

• Eaves Gutters: Modeled externally along the roof edge for visibility and ease of coordination.

We ensure clear differentiation in our 3D models for better understanding by:

• Fabricators

• Site teams

• Design coordinators




Our detailing includes:

• Proper slope modeling

• Overflow provisions

• Coordination with steel items and site adjustments

💡 Final Thoughts

Choosing between a box gutter and an eaves gutter depends on your building’s design, aesthetic goals, water flow requirements, and maintenance considerations. With the right detailing and modeling partner like Sharcon, you can ensure that your drainage system is both functional and visually aligned with your project's needs.
